What is the Difference Between Level 1, Level 2, and DC Fast Charging?
As a new electric vehicle (EV) driver, "Level 1," "Level 2," and "DC Fast Charging" can sound a lot like a foreign language. While intimidating at first, EV charging is as easy as maintaining your smartphone charged. Each EV charging level offers a different mix of speed, convenience, and cost.
In this post, we'll break down the basics of each one, answer the questions you're probably wondering, and help you decide which charging speed is the right fit for your driving needs.
Level 1 Charging – The Everyday Plug-In
Think of Level 1 charging as your simplest option. It's charging with the in-trunk unit that likely came with your EV. It can be plugged directly into a standard 120-volt (120V) wall outlet. This is the same type of outlet you use for your TV or a lamp, so there's no special installation needed. Level 1 charging is the most convenient and cheapest way to charge at home.
How much will it charge my car with Level 1 charging?
It's not the fastest, but it gets the job done. You can expect to add about 2 to 5 miles of range per hour. While that might not sound like a lot, it's often more than enough to "top off" your battery overnight if you drive a short distance each day.
Is Level 1 charging enough if I drive less than 30 miles a day?
Yes. For drivers with short commutes, Level 1 charging is often enough to top off the battery overnight. For longer commutes or heavy daily driving, Level 1 will be too slow, so you’ll need to upgrade to a Level 2 charger.
Is Level 1 EV charging enough for the average U.S. driver?
The average U.S. driver travels almost 40 miles per day. For these drivers, Level 1 might not be enough for their daily routine. If you have a short daily commute (say, 30 miles or less), Level 1 can work perfectly. But for longer commutes (more than 30 miles), you’ll likely need something faster.
Level 2 Charging – Your Daily Driver Solution
Level 2 charging is the perfect middle ground for most EV drivers. It's significantly faster than Level 1 and is what most people rely on for daily charging at home. You can either get a wall-mounted charger or a portable plug-in version, giving you great flexibility. Let's answer the most common questions about Level 2 charging.
What kind of outlet is needed for Level 2 charging?
Level 2 chargers require a 240V outlet, similar to what is used for dryers or water heaters. These can be installed in your garage or other convenient locations.
What is the charging speed for Level 2? Is it better than Level 1?

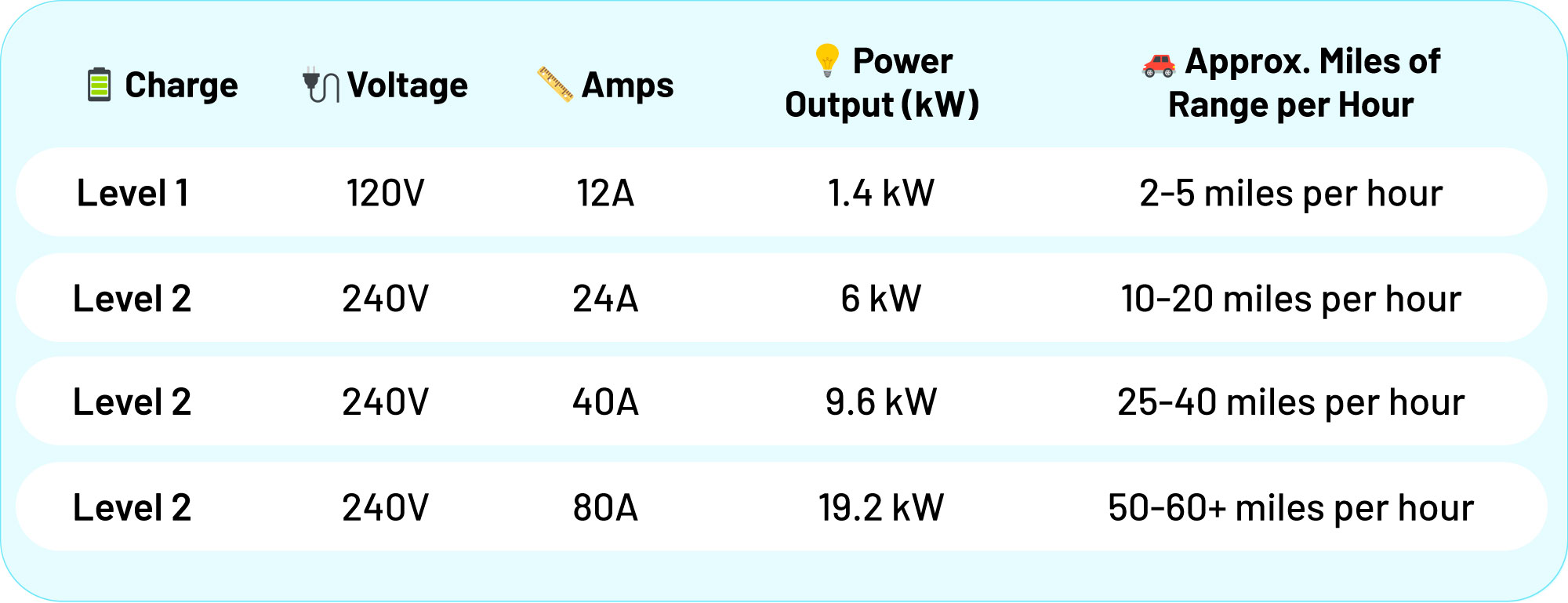

You can expect fastercharging with Level 2 chargers. While Level 1 charging offers 2–5 miles ofrange per hour, Level 2 chargers give your EV 10–60 miles of range per hour, depending on your vehicle and the charger itself. The speed varies because chargers and cars handle power and charging differently.
Does higher amperage always mean faster charging?
Not necessarily, and this is an important detail! Your car's onboard charger has a maximum speed it can handle. If your EV can only accept 32 amps, plugging into a powerful 80-amp charger won't make it charge any faster. Be sure to check your vehicle's maximum charging rate to find the best charger for your needs.
How much does it cost to install a Level 2 charger at home?
The cost can vary, but it's typically a one-time investment. There are two main ways to approach this – Using a 240V outlet or installing a permanent wall-mounted charger.
1. The Plug-In Route (The DIY-Friendly Option)
- What you need: A portable Level 2 charger that plugs into a 240V outlet.
- Cost: The charger itself is usually $200 - $500.
- Installation: If you already have a properly grounded 240V outlet with the correct breaker size, you may be able to plug in directly at no additional cost. If not, an electrician will need to install one for you. Costs vary depending on your home’s wiring, panel capacity, and outlet location, but typically range from $200–$800. More complex upgrades, like adding a new breaker or extending wiring runs, can increase the price.
2. The Wall-Mounted Route (The Permanent Solution)
- What you need: A dedicated wall-mounted Level 2 charging station (also called a "hardwired" charger).
- Cost: The charger is typically $700 - $1,500.
- Installation: An electrician will hardwire it directly into your electrical panel. This can cost anywhere from $300 - $1,500, depending on the complexity of the job — for example, panel capacity, wiring distance, or the need for a new breaker..
DC Fast Charging (Level 3) – EV Game Changer
DC Fast Charging is the fastest way to charge an EV on the market today. It's not something you'll install at home, but it's handy for long road trips, emergencies, or when you just need to get back on the road in a hurry. You'll find these stations in urban centers and along major highways.
What does DC Fast Charging stand for? And why is it faster than AC?
This is where the speed comes in. DC stands for Direct Current, which is the kind of power that your car's battery needs to store energy.
With Level 1 and Level 2 charging, the power from the grid is Alternating Current (AC). Your car has an onboard charger that has to convert that AC power into DC before it can go into the battery. This conversion takes time and slows things down.
DC Fast Chargers bypass your car's onboard charger completely. The charging station itself converts the AC power from the grid into DC and sends it straight to your battery. This direct line of power is what makes it so incredibly fast.
Can DC Fast Charging really charge my car to 100% in under an hour?
Yes, it can! Many DC Fast Chargers can get your EV from a low charge to 80% in 20-60 minutes, depending on your vehicle and the charger's power.
You might notice that charging slows down after 80%. This isn't a bug, it's a feature! This "tapering" protects your battery from stress, heat, and potential long-term damage. It's best to finish off the last 20% with a Level 2 charger if you can, as it can often be faster and is better for your battery's health.
Is DC Fast Charging bad for the battery?
This is a common concern. And it’s true that high-power charging generates more heat and puts additional stress on a battery. However, modern EVs are equipped with sophisticated battery management systems (BMS) that regulate temperature and adjust charging speed to protect the battery from damage.
Research shows that occasional use of DC Fast Charging has a minimal impact on battery health. Still, most experts recommend using it when you need it (for long trips or quick top-ups when you’re low on time) and rely on Level 1 or Level 2 for your everyday charging at home. Think of it like taking the train for a long journey; you wouldn't take it for a trip to the grocery store, but it's the perfect solution for getting across the country. This balanced approach keeps your battery healthier for longer.
How much does it cost to use a DC Fast Charger at a public station?
It’s important to know that DC Fast Charging is a premium service and is generally more expensive than charging at home. The cost can vary widely depending on the charging network (like Electrify America or EVgo), your location, and the pricing model.
You might be charged by:
- Kilowatt-hour (kWh): You pay for the energy you use, similar to your electric bill. This is the most common model.
- Per minute: You pay for the time you are plugged in. This can be more expensive if your car charges slowly.
Expect to pay somewhere between 26–45 cents per kWh, or sometimes more, depending on your state and the network.
Electric Car Chargers for Level 1 and Level 2 Home Charging
With so many chargers on the market, how do you know which one to choose? Finding a charger that is safe, reliable, and durable is the most important step. When you're shopping, look for these key quality indicators:
- Reputable Certifications: Look for safety certifications from third-party testing labs, such as UL, ETL, or CE. These certifications mean the charger has been rigorously tested and meets strict quality standards.
- Durable Design: The charger should be built to withstand all weather conditions, and its cord should be long, flexible, and robust, especially if you plan to use it outdoors or on the go.
- Brand Trust: Be cautious with low-priced chargers by unknown brands; they may lack proven reliability, certified safety, or customer support. Ask yourself, does this company have a history of credibility? Do they stand behind their products with a solid warranty program and good customer support?
When looking for a charger that meets all of these high standards, we recommend the Ampure Go and Go 2 portable EV chargers. They are designed for both Level 1 and Level 2 charging, giving you the flexibility to charge anywhere.
What makes them so reliable? Ampure Go chargers have been chosen by leading automotive brands like Toyota, BMW, KIA, Mercedes-Benz, and others for their proven safety and durability. They come with swappable grid plugs, which let you easily switch between a standard wall outlet (for Level 1) and a 240V outlet (for Level 2).
This flexibility means a single charger is all you need for your daily charging at home, on a trip, or visiting family.
Final Thoughts - Which Charging Level is Best for You?
With all this information, you're now a charging pro! To help you decide, here's a quick cheat sheet based on your typical driving habits:
- If you drive 30 miles or less a day: Level 1 is your best friend. It’s cheap, convenient, and perfectly suited for topping off your battery overnight.
- If you have an average or long daily commute: Level 2 is likely the ideal solution. It’s fast enough for daily use and provides the flexibility you need for longer trips or busier days.
- If you’re on a road trip or in a hurry: DC Fast Charging is the answer. It’s your go-to for quickly adding hundreds of miles of range on the go, even if it's more expensive.
For most EV owners, a portable Level 2 charger offers the best of both worlds: the reliability of daily home charging and the freedom to charge at a friend's house, a campground, or a public Level 2 station.
No matter which charging level you choose, you're on the right track. Happy charging and driving!
